Lens "Mini" Experiment
IntroductionThis experiment began from a small discussion about a book, which was later turned into a film, called "Lord of the Flies." In one scene in the film a character uses his glasses to start a small fire by focusing the Sun's rays, which the stranded boys on the island needed for heat, cooking and other things. We questioned if it was actually possible for regular glasses to burn something. There were two kinds of experiments, those done indoors in the lab and those done outside in bright sunlight. The main purpose of the indoor experiments was to verify the Thin-Lens Equation and use it to determine the focal lengths of several lenses as precisely as possible. TheoryA key formula when working with lenses is the Thin-Lens Equation:

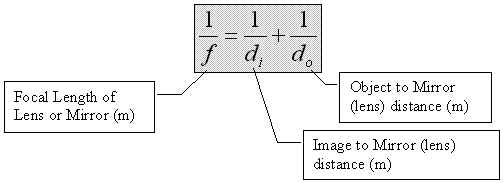

where f is the focal length of the lens, do is the object distance and di is the image distance. From the Thin-Lens Equation we are able to mathematically see and understand many interesting and valuable situations that arise when working with lenses. When the object is the same distance from the lens as the image, for instance, we can easily verify that the focal length must equal half the image (object) distance or if the object is very far away from the lens (at infinity) the focal length will equal the image distance, just to mention a few. Indoor MeasurementsI used a work table to precisely measure the focal lengths of the magnifying lenses and the reading glasses by placing a flashlight at one end of the table, a screen at the other and the lenses in between them. The light was covered with black tape and had a small hole poked in it, thus making the light a point source. I moved the lenses at different points between the screen and light and by recording data at the spots when the light came to a focus on the screen, from the Thin-Lens Equation the focal length of the lenses could be calculated. Varying the distance between the screen and source also allowed us to varify the properties of the Thin-Lens Equation. We see that when do = di, the focal length f is equal to one-half the image or the object distance (or the distance between the lens and the object or image is twice the focal length). If the object moves closer than this point (twice the focal length) we can predict that we will not be able to view the image on the screen.
Shown below is the data for a 7 cm diameter magnifying lens and the
reading glasses:
From the data it is clear that when the object is far away from the lens the focal length does not equal the image distance. Why is that? A major limiting factor in this experiment is the size of the table that the flash light and the lenses were on. It is true that at infinity the focal length will equal the image distance, however, in our case, the object is not at infinity but at a distance much closer (a few hundred centimeters). When do is not infinity but a smaller number (as in our case), the term 1/do is not zero and the value of the focal length is not solely determined by the image distance. Outdoor MeasurementsWe brought four types of lenses outside on a sunny day, three magnifying lenses and the reading glasses. We placed our screen (a piece of paper) on the ground and held a lens above it, varying the distance until the Sun's light came to a focus; when this point was reached the paper began to burn. The Sun's energy flux density or irradiance is what was responsible for this burning. Solar IrradianceIrradiance is defined as the rate of energy emission per unit area. The standard and accepted value for the Sun's irradiance at the surface of the Earth is 1 kW/m2. The two diagrams below show clearly the Earth's relationship with the Sun's irradiance and the different forms that solar irradiance takes to combine to form at the Earth's surface in a "global irradiance" (note, 1.5 x 1011 m is the mean Earth to Sun distance and the value 1370 W/m2 is the solar irradiance observed outside the surface of the Earth negating average weather conditions):
Knowing the solar irradiance we can find the power through a specific area, such as the power through the lenses. At a point before the Sun's light hits the lens, the irradiance is simply 1 kW/m2. Since the area is not specified the power is zero before the light enters the lens. Once it enters the lens, though, we can find the power because the area is known. At the lens, the irradiance is also 1 kW/m2, but the power is now the area of the lens multiplied by the irradiance entering it. When the lens brings the sunlight to a focus on the screen, it begins to burn. One might reason that in order for a hole to burn through the screen the Sun's power hitting the screen must be amplified. Therefore, the bright spot at the screen must contain more power than the light entering the lens. This line of reasoning is on the right track, however it is incorrect. In actuality the power at the lens and the power at the spot is exactly the same. The only thing that differs between them is their irradiances. That is, while the power at the spot is the same as at the lens, the irradiance at the spot is much greater here than at the lens. The reason why the irradiance changes in going from the lens to the spot is the two different areas that the light goes through. It's concept is similar to water moving through a funnel. The rate at which water enters the funnel is relatively slow, depending on how fast or slow someone pours it. In contrast, at the end or tip of the funnel, the rate that the water leaves is fast, however the amount of water that is poured in and that leaves is the same (amount of water in = amount of water out, but rate differs). To find the irradiance at the spot we simply multiply the irradiance at the lens by the ratio of the lenses area to spot's area: Irradiance at Spot = (Irradiance at Lens) x (Area at Lens/Area at Spot).
Below is the data that was collected for each lens:
While taking measurements outside I noticed that while all three magnifying lenses were able to burn the paper the reading glasses were not. Comparing the data for lens 1 with the reading glasses it is clear that both lenses deliver the same power to the spot, however their irradiances are different. The irradiance for lens 1 is about 20 times larger than the reading glasses! Yet why does the magnifying lens burn the paper and the reading glasses do not? After all, the glasses magnify the Sun's irradiance by about 27 times! At first glance it would seem that 27,000 W/m2 would be sufficient to burn a tiny hole into a piece of paper, however from experimentation we know that it is not. There must be a minimum irradiance, then, in order for the paper to burn. Minimum IrradianceBringing a magnifying lens outside to find the minimum distance and spot size for the paper to burn, we can find the minimum irradiance needed for burning to occur by moving the lens from a distance above the screen to a point where burning just begins to occur. Using magnifying lens 3 we measured the minimum spot size to be 1.3 cm. Using (2) we found that the minimum irradiance for burning to occur was 43.6 kW/m2. Even though the spot size that we measured is larger than that of the reading glasses, it is the ratio of it lens area to spot area that is important; the magnifying lenses area is larger than the reading glasses). The reason, then, that the magnifying lenses easily burned the paper and the reading glasses did not was because the ratio of the lens area to the spot area for the glasses did not increase the irradiance by the minimum factor of about 44 and the magnifying lenses did. Spot SizeSo far we have learned how to find the irradiance and power entering a lens and at a spot on a screen and also the minimum irradiance needed to burn a hole in the screen, yet we have not really discussed much about the spot's size that is viewed on the screen. Looking at the data for the three magnifying lenses and the reading glasses we see that the size of the spots change for each lens. What do these different spot sizes represent, do they effect the irradiance or anything we have observed so far and given a specific lens can we actually predict the spot size we will see? By utilizing (1) we can find the magnification of a lens by:

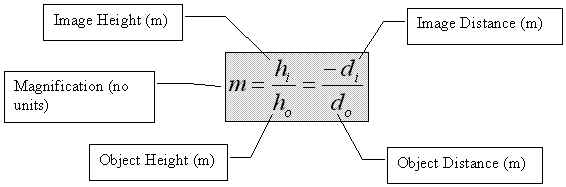

In our experiment do is the distance from the Earth to the Sun (1.50 x 1011 m), di the lens to screen distance, ho is the size or diameter of the Sun (1.39 x 109 m) and hi is the spot size. From (3) we see that if an object is upright then the image we see from the lens will be inverted. Since our object is the Sun, a big "circle" so to speak, we can negate the minus sign in the formula because the orientation of its image does not matter. Since we know the Earth to Sun distance, the Sun's size and the distance from the lens to the screen we can find the spot size by:
